Laboratorium die Extruder samenstellen
Created with Pixso. Lab Scale Benchtop Micro Compounder Mini Twin Screw Extruder for plastics Polymer R&D

Lab Scale Benchtop Micro Compounder Mini Twin Screw Extruder for plastics Polymer R&D

Merknaam: Ruiming
Modelnummer: SJZS
MOQ: 1 stuks
Prijs: negotiable
Leveringstermijn: 20-90 dagen na bevestiging van de bestelling
Betalingsvoorwaarden: L/C, D/A, D/P, T/T, Western Union
Gedetailleerde informatie
Plaats van herkomst:
China
Certificering:
patent
Hoofdmateriaal:
Roestvrij staal
Voeding:
twee voedingspoorten
kenmerkend:
Desktop
Toepassen:
Polymeermateriaal
Aanpassen:
Aanpasbaar
gebruikte locatie:
Laboratorium
Verpakking Details:
kartondoos en houten doos
Levering vermogen:
200 stuks per maand
Markeren:

Microcompounder op laboratoriumschaal

,

Onderzoek en ontwikkeling op het gebied van polymeren

,

Mini Twin Screw Extruder

Productbeschrijving

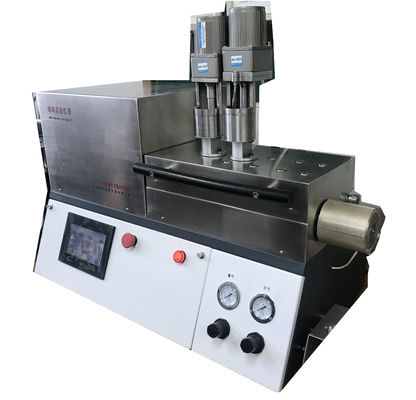

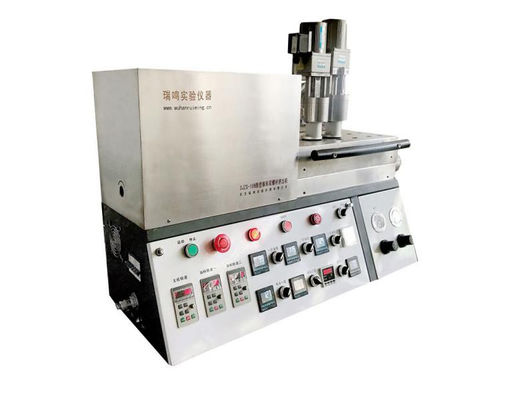

Ruiming SJZS series Micro compounder is a Laboratory scale mini conical Twin Screw Extruder which can be used to mix or compound very small amount of polymeric materials for plastics and Polymer new materials R&D, and is especially ideal for compounding expensive materials and for performing reactive extrusions. The easy accessibility of the horizontally split, hinged-barrel design lets you observe the material during the extrusion procedure. With an integrated backflow channel and a bypass valve design, the residence time is well defined. Using the optional force feeder with the Micro Compounder, continuous extrusion with very small volume flows is possible.



Features:

  • It is a small laboratory scale equipment and can be easily placed on a laboratory bench.
  • Low testing material consumption, and low laboratory costs.
  • Unique back flow channel design in the barrel allows easy and accurate control of the residence time and the plasticizing process of testing materials.
  • Unique divisible barrel design makes it easy to observe the testing results and to clean the barrels and screws.
  • Automatic bypass operation for circulation and direct extrusion.
  • Optional specially designed force feeder can efficiently feed powder and nano materials.
  • Multiple feeding ports, different types of force feeder and the linkage between main motor and feeding motors can efficiently feed different types of materials and help to achieve maximum material mixing and dispersion.
  • High screw torque makes it easy to process high viscosity materials such as rubbers and elastomers.
  • Inert gas flush system.
  • Optional vacuum dehumidification system.
  • Electric or PLC Touch Screen Control.
  • Our Micro Lab Compounder can be conveniently used in combination with our micro injection molding machine to produce tensile bars or specimens for laboratory material testing.
  • Our Micro Lab Compounder Extruder can be used in combination with our other lab instruments to produce various testing products such as filaments, fiber, pipes, sheet, film, pellets, nonwoven fabric, bottles, profiles, etc. for laboratory material testing.

Key Technical Specifications



Key Technical Specifications SJZS-7A SJZS-10A SJZS-10B SJZS-10Z
Screw diameter (mm) 7/25 10/30 10/30 10/30
Screw thread length (mm) 190 190 250 190
Screw rotation speed (rpm) 70 51 51 51
Barrel Type Divisable Divisable Divisable Not Divisable
Main motor power( kw) 0.55 0.75 0.75 0.75
Circular Mode Capacity (g/per time) 5-10(manual control) 15-18(auto control) 15-18(auto control) without
Direct Mode Capacity (max kg/h) 0.45 1.5 1.5 1.5
Heating temperature (max ℃) 450 450 450 450
Feed 1 power (W) 25(optional) 25(optional) 25 25
Feed 2 power ( W) N/A N/A 25 N/A
Power of vacuum exhaust and dehumidification device (W) N/A N/A 180(optional) N/A
Nitrogen protection Yes Yes Yes Yes
size (mm) 800X350X580 800X350X580 850X350X580 800X350X580




Key Technical Specifications SJZS-20 SJZS-20A
Screw diameter (mm) 20/40 20/53
Screw thread length (mm) 390 480
Screw rotation speed (rpm) 0-50 51
Barrel Type Not Divisable Not Divisable
Main motor power( kw) 1.5 2.2
Circular Mode Capacity (g/per time) N/A N/A
Direct Mode Capacity (max kg/h) 6 6
Heating power (kw) 4.5 5
Feed 1 power (W) 25(optional) 25
Feed 2 power (W) N/A 25
Power of vacuum exhaust and dehumidification device (W) 250(optional) 250(optional)
Nitrogen protection Yes Yes
Size (mm) 1020x450x600 1120x450x600
